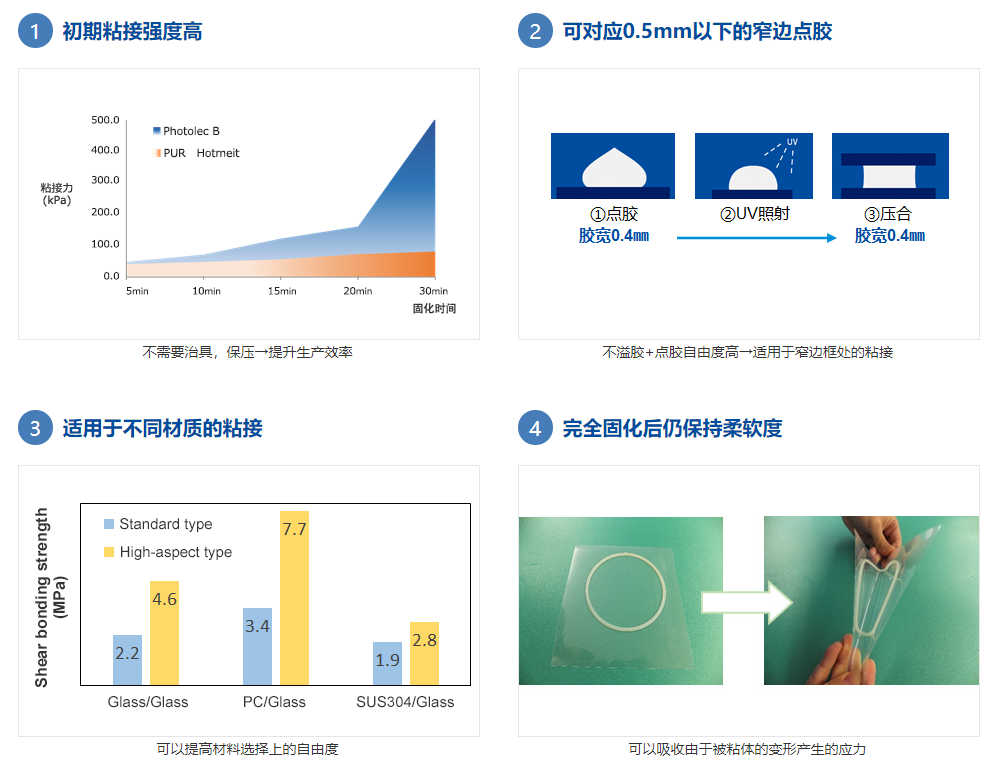

積水化學UV（B階段）+濕氣固化型粘接劑產品特征

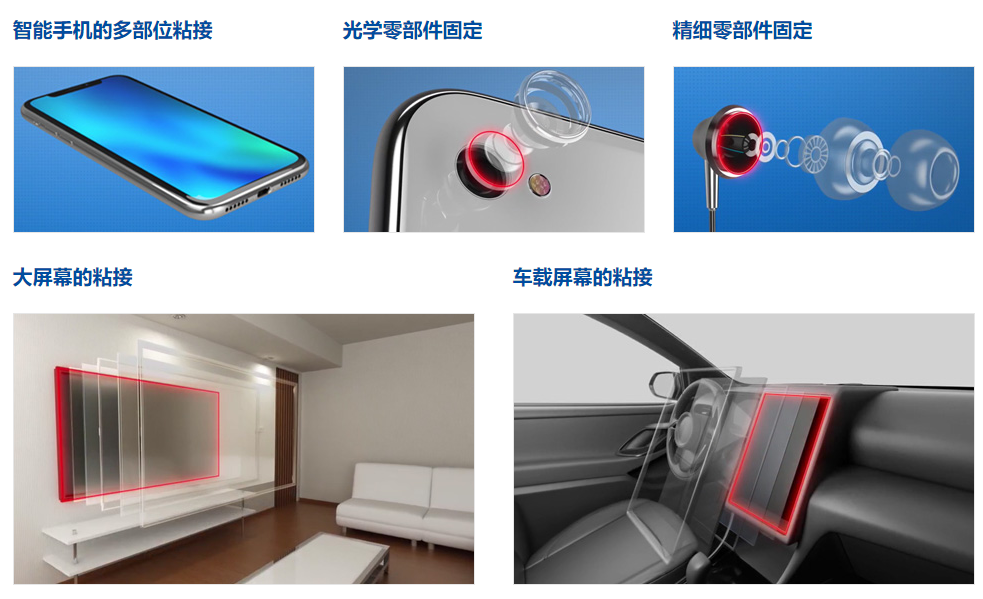

積水化學UV（B階段）+濕氣固化型粘接劑應用場景
積水化學UV（B階段）+濕氣固化型粘接劑應用參數
| Item | Photolec B | Remarks | ||
|---|---|---|---|---|
| Standard | High-aspect | |||
| Resin Type | Urethane+Acryl | |||
| Curing Type | UV+Moisture | |||
| Curing conditions | Wavelength | λ=365～405nm | ||
| Irradiation | 1000mJ/cm2 | |||
| Moisture curing | 25℃50%×24hr | |||
| Viscosity（mPa?s） | 44,000 | 104,000 | 5rpm 25℃ | |
| TI Value | 1.2 | 2.7 | 1rpm/10rpm | |
| Tg（℃） | 15 | 18 | DMA | |
| Shear bonding strength | Glass/Glass | 55 | 115 | N/25mm2 |
| PC/Glass | 85 | 193 | ||
| SUS304/Glass | 48 | 73 | ||
| Storage conditions | 25℃ Under 30%RH | |||
※The above numbers are examples of measured values, not guaranteed values
